The legendary Jeep Wrangler is an American icon. With roots going back to World War Two, this 4×4 has inspired a modern lineup of Jeep trucks and Jeep SUVs. Many fans wonder, “does Jeeps have a diesel engine?” The truth is that Jeep offered the Grand Cherokee with a diesel V6 for years, but discontinued the option recently. In 2020, it added the same diesel V6 engine to the Jeep Wrangler powertrain choices. Then in 2022, the Jeep Gladiator joined the diesel Jeep club. But by the end of 2023, Jeep will no longer offer any EcoDiesels, so if you want one you must buy it used.

Jeep’s 3.0-Liter V6 turbocharged diesel “EcoDiesel”

Ram 3.0L EcoDiesel V6 problems
Ram 3.0-liter EcoDiesel V6 | Stellantisf

It was a historic first: the United States market Jeep Wrangler offering a diesel engine. This option was badged as the EcoDiesel Jeep. For 2022 and 2023, the EcoDiesel was also available in the Gladiator Jeep truck.

The engine in question is a 3.0 liter V6. It is actually the same as the EcoDiesel that Ram offered in the 1500 for years. It is also the same diesel that Jeep put in the Grand Cherokee until 2020. The Wrangler and Gladiator 3.0-liter Jeep EcoDiesel is not to be confused with the 3.0-liter EcoDiesel in the Ram ProMaster, which is a completely different engine.

Fiat Chrysler Automobiles (FCA) originally tasked its Italian engine designer, VM Motori, with developing the powerplant. Its internal Stellantis name is L630 DOHC.

In addition, Jeep modified this turbodiesel engine so it can ford up to 30 inches of water. For the Wrangler, the company only offered the EcoDiesel in four-door models with an 8-speed automatic transmission and 4WD. In the Gladiator, the EcoDiesel is available in select trims, and only with the 8-speed automatic.

Jeep’s diesel engine makes 442 lb-ft of torque

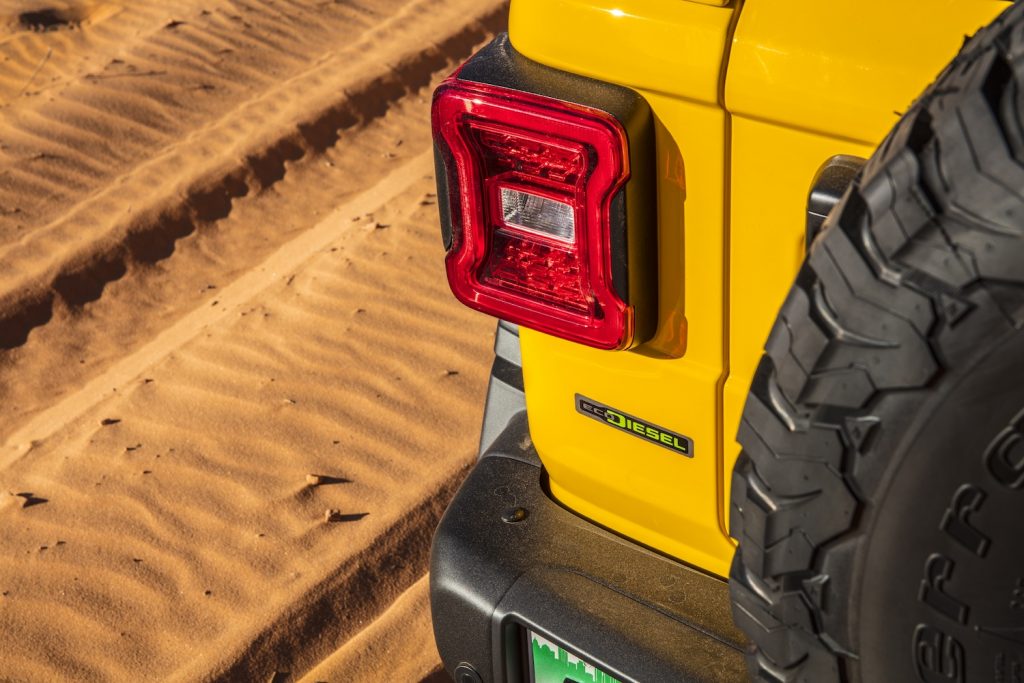

This 2021 Jeep Wrangler EcoDiesel shares a V6 with the Ram 1500 | Jeep
2021 Jeep Wrangler Rubicon EcoDiesel | Jeep

In the Wrangler and Gladiator, this diesel engine only makes 260 horsepower. But 4×4 fans know torque is king; the V6 is off-road-ready with 442 lb-ft of torque. That’s more torque than the 5.7-liter HEMI engine makes.

The result is a (relatively) quick Wrangler. MotorTrend found the EcoDiesel Wrangler can accelerate to 60 MPH in 7.5 seconds. It finishes the quarter-mile in 15.8 seconds at 86.3 MPH. In a straight line, it is actually one of the fastest four-door Wranglers ever made. The Diesel Jeep Wrangler’s 5,000+ pound curb weight makes it a bit more sluggish than the average Wrangler in the twisties.

Equipped with this EcoDiesel, the Jeep Wrangler is rated with a maximum towing capacity of 3,500 lbs. The Ram Truck with the same EcoDiesel engine is rated to tow 12,560 pounds, so what gives?

Firstly, the truck version is tuned to make 480 lb-ft of torque. Secondly, the full-size truck has beefier axles while base Wranglers ride on a Dana 35 in the rear. Thirdly, tow ratings are based on towing in all conditions. The most difficult towing conditions are moving slowly, uphill, in extremely hot weather. In these conditions, a vehicle with a larger radiator and better cooling system (say, a full-size pickup) will earn a better tow rating.

When you equip the Jeep Gladiator EcoDiesel engine, the truck’s tow rating increases to 6,500 pounds. The Gladiator EcoDiesel makes the same 442 lb-ft as the Wrangler’s EcoDiesel. They also share transmissions. That said, the Jeep Gladiator benefits from heavy-duty Dana 44 axles front and rear. It presumably also has a more efficient engine cooling system.

With better fuel mileage than most Jeeps, the EcoDiesel earns its name

2021 Jeep Wrangler Rubicon EcoDiesel shares an engine with the Gladiator | Jeep
2021 Jeep Wrangler Rubicon EcoDiesel | Jeep

This diesel leverages a double overhead camshaft (DOHC) and four valves per cylinder to make all that torque efficiently. Fuel injection is direct, thanks to a common-rail system. In addition, it uses start/stop technology to avoid idling at stoplights. The result is 22 city/29 highway MPG (25 combined). This makes the EcoDiesel Wrangler more efficient than any Wrangler besides the new 4xe plug-in hybrid.

Though the EcoDiesel Jeep Wrangler gets excellent mileage on paper, MotorTrend drove it for a week and found its mileage lagging. It was still better than the eTorque 4-cylinder Wrangler (the next most efficient option). But its heavyweight drivetrain weighs the SUV down, and without regenerative braking, city driving can be costly.

Is the EcoDiesel right for your next Jeep? This diesel engine upgrade was a $3,500 option on a Wrangler, a $4,000 option on a Gladiator. But they may command a higher premium on the used market because they are so rare.

An EcoDiesel Jeep is a very different vehicle than a regular Jeep. It will have plenty of torque for mudding and rock crawling. In addition, it is slightly more efficient and faster in a straight line. But as a heavier Jeep, it will handle differently. Whether the EcoDiesel Jeep is right for you depends on how you plan to drive it.

See a mechanic’s thoughts on the diesel Jeep in the video below:

You can also find out how a used diesel Jeep has held up in this final video:
