How to Use Your Trailer Brake Controller on Your Truck or SUV

Many new trucks and SUVs have trailer brake controllers that help you stop a trailer with electric brakes. They’re great when you’re towing a trailer, but setting one up properly is key to making sure you don’t melt your trailer’s tires or go careening into the first ditch you see. There are a few guidelines for setting up a trailer brake controller but it’s easy to set one up and understand how they work.

What is a trailer brake controller?

Learning how to properly set a trailer brake controller is key to towing a big trailer.
Ram 1500 Rebel trailer brake controller | Dan Mayfield, MotorBiscuit

RELATED: Is it Better to Tow With a Truck or SUV?

A trailer brake controller does what is in the name. But, it only works if you have a trailer with electric brakes and the right cables hooked up to your truck or SUV. And, the trailer’s electric brakes only work if the battery is charged, so make sure it has juice. A trailer brake controller is almost a necessity if you’re towing a big trailer, and especially if you ever need to back up a hill with a trailer.

Many trucks and SUVs come with integrated controllers, but you can find aftermarket controllers, too.

What should my trailer brake controller be set to?

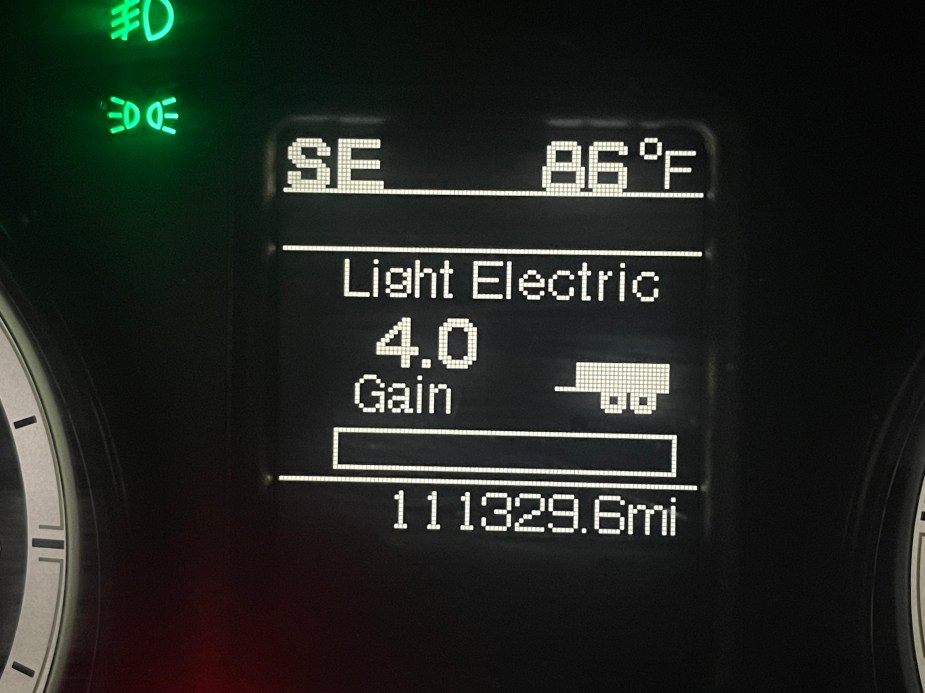

Ram 1500 Rebel trailer brake controller | Dan Mayfield, MotorBiscuit

Start with a low number and work you way up, which is called “trailer gain.”  One way to set trailer gain is by setting the trailer brake controller to a low number, like 1 or 2, and then squeeze the brake controller manually toggles together. The toggles on controllers squeeze the brakes on the trailer manually.

Start your truck and take your foot off the brake. Squeeze the controller. If the truck starts moving in gear, the trailer brakes aren’t working. Manufacturers recommend that you set the controller at a small number like 1 or 2, and then drive to 25 mph or so, and squeeze the brake controller. If it locks the wheels, the number is too high. So, if you set it at 3, squeeze the buttons while driving slowly, and hear a squeal, the controller is set too high: lower the number and try again. Your owner’s manual will have specific instructions for your vehicle.

How do electric brake controllers work?

RELATED: Are Diesel Trucks Really Better for Towing?

The controller connects to your truck or SUV’s braking system. When you hit the brake pedal, the trailer hits its brakes. But, since not all trailers weigh the same and since some have two wheels, others have four, and tires come in a variety of sizes the pressure you need to apply varies. That’s why there are several settings on a controller.

Should my trailer brake controller always be on?

Most modern trailers have electric brakes that connect to your truck or SUV.
An Airstream Safari travel trailer | Robert Alexander, Getty Images

If you are towing a trailer, and it is hooked up to your truck or SUV, then yes, leave it on. When you don’t have a trailer connected, it doesn’t matter if it’s on or off. If the battery dies, or the trailer becomes unhooked, the breakaway switch will trigger and the trailer should automatically stop.

How do I know if my trailer brake controller is working?

A pickup truck in the distance pulls an airstream trailer through the mountains, sandy ridgelines visible behind it.
2021 Nissan Titan | Nissan

RELATED: Choosing the Best Pickup for Your Towing Needs

It’s hard to tell just by pressing the brake pedal if your controller is working. Instead, drive slowly and squeeze the buttons on your brake controller and you should feel your trailer slow you down. If you don’t, you may need to set your gain properly or you may have a faulty system. Most likely, the battery for the electric brakes is dead, so make sure that’s charged before you test the trailer brakes. Also, it’s always a good idea to make sure the brake pads and tires in the trailer are in good shape.
